2.03 Taints and Tolerations

Taint (on Node): says “don’t accept certain Pods unless they have permission.”
Toleration (on Pod): is that permission which allows the Pod to run on a tainted Node.

Key Point

• Taints keep Pods away from Nodes.
• Tolerations let Pods through, but don’t force them onto that Node.
• To force Pods onto specific Nodes, use Node Affinity.
• Remember: Taints are set on Nodes and Tolerations are set on Pods.

---

Taint Effects

Taints can have 3 different effects:

• NoSchedule → Pod without toleration will not be scheduled on the node.
• PreferNoSchedule → Kubernetes tries not to schedule Pods without toleration, but may still do so if needed.
• NoExecute → Pod without toleration will be evicted if it’s already running, and new Pods without toleration won’t be scheduled.

---

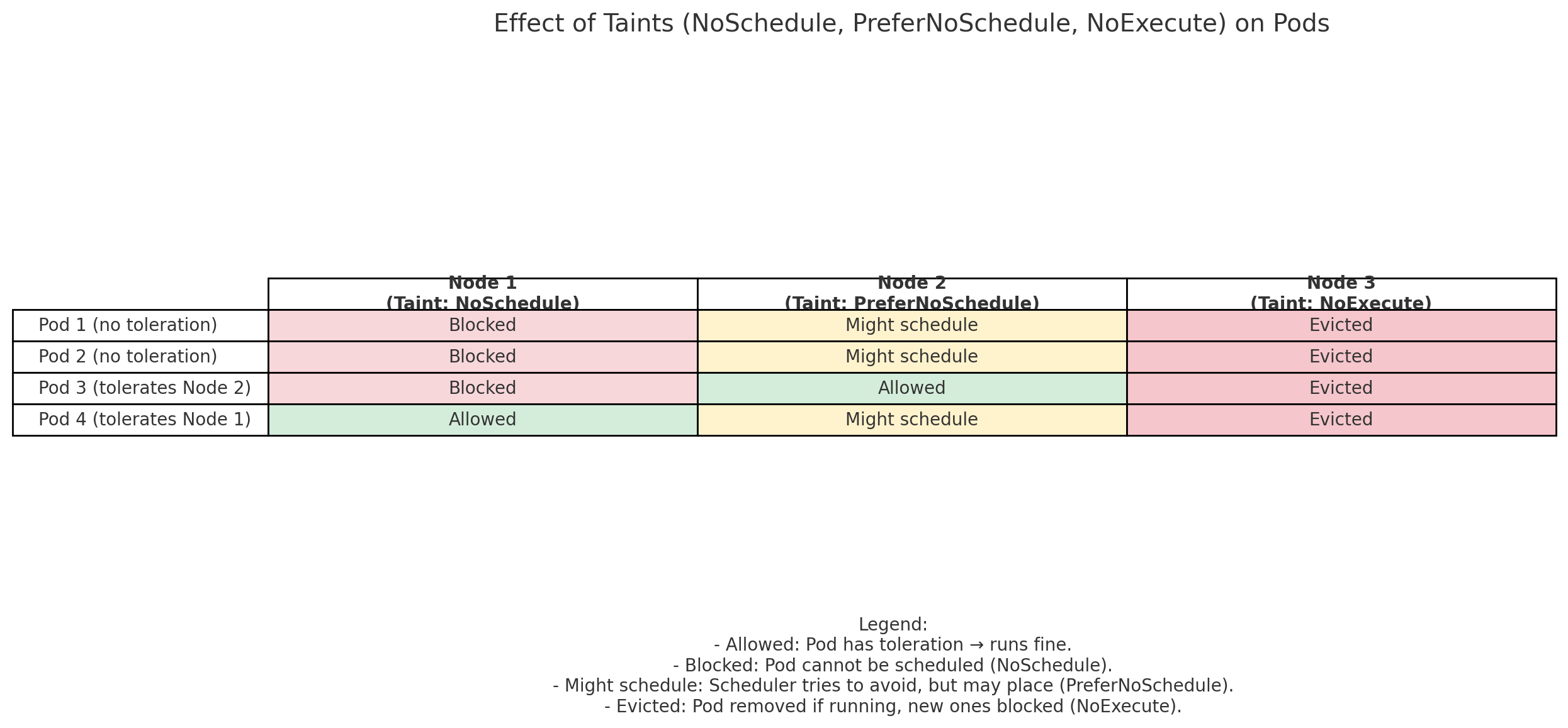

Example

We now have 3 nodes, each with a different taint effect:

Nodes & Their Taints

• Node 1 – NoSchedule 👉 Pod without toleration ❌ won’t be scheduled.
• Node 2 – PreferNoSchedule 👉 Pod ⚠️ might still be scheduled if no better option.
• Node 3 – NoExecute 👉 Pod ⛔ is evicted if already running, and new ones are blocked.

Pods in This Scenario

• Pod 1 → no toleration
• Pod 2 → no toleration
• Pod 3 → tolerates Node 2’s taint
• Pod 4 → tolerates Node 1’s taint

---

Taint Syntax

Add a Taint to a Node

kubectl taint nodes <node-name> <key>=<value>:<effect>

Taint Example

kubectl taint nodes node1 app=blue:NoSchedule

Tolerations example

apiVersion: v1
kind: Pod
metadata:
  name: myapp-pod
spec:
  containers:
    - name: nginx-container
      image: nginx
  tolerations:
    - key: "app"
      operator: "Equal"
      value: "blue"
      effect: "NoSchedule"

Note

Remember, all of these values inside tolerations need to be encoded in double quotes.

---

Master Node Taints

• Master nodes can technically run Pods like worker nodes, but by default the scheduler avoids them.
  This is because a taint is automatically applied to master nodes when the cluster is first set up.

• You can view or modify this taint if needed, but best practice is not to run application workloads on master nodes.

Check Taints on Master Node

kubectl describe node <master-node-name> | grep Taint

Remove a Taint from a Node

• To remove a taint from a node in Kubernetes, you append a - at the end of the taint specification.

• For example, to remove the NoSchedule taint from the controlplane node, run:

kubectl taint nodes controlplane node-role.kubernetes.io/control-plane:NoSchedule-
